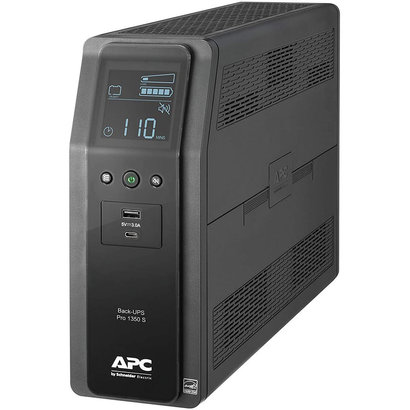

APC UPS, 1350VA Sinewave UPS Battery Backup & Surge Protector, BR1350MS Backup Battery with AVR, (2) USB Charger Ports, Back-UPS PRO Uninterruptible Power Supply Black (BR1350MS)

AP-BR1350MS
$189.00 Excl. tax
  • Availability: In stock (3)

Product description

  • Brand:APC
  • Article number:AP-BR1350MS
  • Availability: In stock (3)

Output

Max Configurable Power (Watts) 810 Watts / 1.35kVA
Output Frequency (sync to mains) 60 Hz +/- 3 Hz Sync to mains
Topology Line interactive
Waveform type Sine wave
Transfer Time 8 ms typical : 10 ms maximum

Input

Input frequency 60 Hz +/- 3 Hz
Input voltage range for main operations 88 - 147V
Number of Power Cords 1

Batteries & Runtime

Battery type Lead-acid battery
Included Battery Modules 1
Typical recharge time 16hour(s)
Replacement Battery APCRBC161
Expected Battery Life (years) 3 - 5
RBC Quantity 2
Battery Charge Power (Watts)10 Watts
Battery Volt-Amp-Hour Capacity168

Communications & Management

Interface Port(s) USB
Control panel Multifunction LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering

Surge energy rating1080Joules
Data Line Protection Coaxial video/cable protection, RJ45 10/100/1000 Base-T Ethernet protection
Filtering Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous

Physical

Maximum Height10.24inches (260MM, 26.0CM)
Maximum Width3.94inches (100MM, 10.0CM)
Maximum Depth14.49inches (368MM, 36.8CM)
Net Weight25.79lbs. (11.7KG)
Shipping weight29.32lbs. (13.3KG)
Shipping Height14.12inches (359MM, 35.87CM)
Shipping Width8.78inches (223MM, 22.3CM)
Shipping Depth18.98inches (482MM, 48.2CM)
Master Carton Dimensions (Length x Width x Height)14 x 9 x 19inches (356 x 229 x 483MM)
Master Carton Units1.0
Master Carton Weight 29.32lbs. (13.3)
SCC Codes 10731304335396

Environmental

Operating Temperature 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity 0 - 95 (Non-condensing) %
Operating Elevation0 - 10000ft (0 - 3048meters)
Storage Temperature -15 - 40 °C
Storage Elevation0 - 10000ft (0 - 3048meters)
Audible noise at 1 meter from surface of unit 45.0dBA

Conformance

Approvals
ENERGY STAR V2.0 (USA), FCC part 15 class B, NOM, TUV C-US certified
Equipment protection policyLifetime : $500000
Standard warranty3 years repair or replace

Sustainable Offer Status

RoHS Compliant
Proposition 65 Warning Available in Documentation tab
