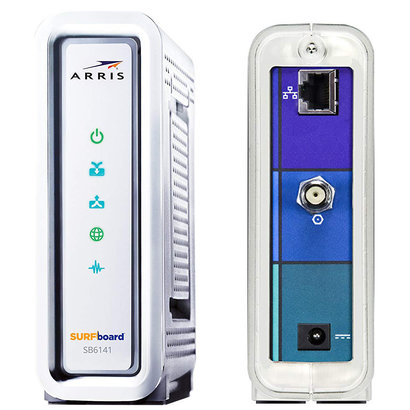

ARRIS SURFboard SB6141 DOCSIS 3.0 Cable Modem

$29.99 Excl. tax
  • Availability: In stock (15)

Product description

  • Brand:Motorola
  • Article number:MO-SB6141R
  • Availability: In stock (15)

Product Description

Building upon the success of the SB6121, Motorola's SURFboard SB6141 enhances your personal media experience, at lightning-fast broadband speed. It harnesses the power of DOCSIS 3.0 technology to bond up to eight downstream channels and four upstream channels--providing you advanced multimedia services with data rates up to 343 Mbps download and 131 Mbps upload depending on your Cable Internet provider service. That makes streaming HD Video, gaming, shopping, downloading, working, high-quality voice and video conferencing, and peer-to-peer networking applications far more realistic, faster, and efficient than ever before.

Surfboard SB6141 Cable Modem

Strengthen your broadband - count on Motorola's SURFboard DOCSIS to help you deliver innovative, ultra-broadband data services.

High Value and Increased Data Speed


Motorola's easy-to-use SB6141 SURFboard DOCSIS 3.0 Cable Modem offers high-bandwidth data and multimedia services. Utilizing the power of DOCSIS 3.0, the SB6141 enables channel bonding of up to eight downstream channels and four upstream channels, which gives you advanced multimedia services with data rates of over 300 Mbps for received data and over 100 Mbps when sending data. The SB6141's higher-speed services enable you to:

Protect an installed base of high-speed data users

Deliver high-bandwidth, multimedia services

Deliver competitive, high-capacity commercial services to your business customers

Economic and Flexible

The Motorola SB6141 SURFboard DOCSIS 3.0 Cable Modem provides you with an economic option for ultra-broadband services, with eight times the current maximum user data throughput approximating over 300 Mbps in DOCSIS and 400 Mbps in EuroDOCSIS mode*. You don't even need the hybrid fiber coax (HFC) plant upgrade. Maximizing your current Internet setup, the SB6141 can be deployed without service interruption. Backwards-compatible to DOCSIS 1.0, 1.1 and 2.0, the SB6141 also supports both IPv4 and IPv6, Advanced Encryption Services, and all other DOCSIS 3.0 standards. As part of Motorola DOCSIS 3.0 Ultra-Broadband family of products, the SB6141 tuner has flexibility of two individual capture bandwidth groups, each 96 MHZ. These downstream capture windows can be placed independently anywhere within the 108 MHz to 1 GHz spectrum for deployment of new high-value services, such as bandwidth on-demand, commercial services, interactive gaming, and IPTV, to their customers. The SB6141 features a 10/100/1000Base-T Ethernet (RJ-45) port, as well as intuitive, easy-to-read front-panel operational status LEDs. You can optionally activate dual-colored LEDs in order to have visual verification of bonded channels and GigE link use. With Motorola's cable modems, high-speed Internet access is always at your fingertips - always on and always connected. The SB6141 is the ideal competitive solution for your house, your small home business, or your medium to large business enterprise.

Motorola's Service-Assured DOCSIS

3.0 Solutions enable increased bandwidth, enhanced security, and cost-effective data services - all while maximizing your current infrastructure and lowering extra costs.

Technical Specifications

Cable Interface 75, F-connector

Dimensions: 5.24 in H x 5.24 in W x 1.65 in D

Power: 9W (nominal)


Modulation: 64 or 256 QAM

Capture Bandwidth: Dual 96 MHz Capture windows

Bandwidth: DOCSIS = 48 MHz; EuroDOCSIS = 64 MHz

Security: DOCSIS 3.0 Security (BPI+, EAE, SSD)


Modulation: QPSK and 8, 16, 32, 64, 128 QAM

Channel Width: 200 kHz, 400 kHz, 800 kHz, 1.6 MHz, 3.2 MHz, 6.4 MHz

Maximum Channel Rate**

DOCSIS: 131.072 Mbps (4 channels) / 32.768 Mbps (single channel): @ 128 QAM at 6.4 MHz

EuroDOCSIS: 131.072 Mbps (4 channels) / 32.768 Mbps (single channel): @ 128 QAM at 6.4 MHz

Compatibility: PC: Windows Vista, 2000, XP or 7 or Linux with Ethernet connection (older versions of Windows, although not specifically supported, will work with this cable modem); Macintosh: Power PC or later; OS 9 or higher, Ethernet connection; UNIX: Ethernet connection; Home Networking: Ethernet router or wireless access point


Compatible with Windows, Macintosh, and UNIX computers

DOCSIS 3.0 Compatible, featuring:

Channel bonding of up to eight downstream channels and four upstream channels increasing data rates of over 300 Mbps for received data and over 100 Mbps when sending data

Supports IPv4 and IPv6 to expand network addressing capabilities

Enhanced security: supports AES traffic encryption

Enhanced network management

Ability to provision and manage IP multicast

GigE (RJ- 45) data port with Auto Negotiate and Auto MDIX

User-friendly online diagnostics

Optional Mid-Split support for cable plants that can utilize the advantages of a 5 -85 MHz upstream spectrum

The SB6141 includes an internal filter to eliminate potential interference from MoCA signals' intermodulation beats

Optional USB Device Port available


Easily add the SB6141 to a deployed family of SB6120s and SB6121s, all three models utilize the same firmware image. This reduces qualification time and eliminates setup headaches

This Certified Refurbished product is manufacturer refurbished, shows limited or no wear, and includes all original accessories plus a 90-day warranty

Requires CABLE Internet Service, if not sure your provider is CABLE call them to confirm

Compatible with ALL Major CABLE providers like Comcast/Xfinity, Cox, Charter, Time Warner, Mediacom, Bright House

Internet download speeds up to 343 Mbps and upload speeds up to 131 Mbps based on your Cable provider service

Ideal for streaming HD Video and gaming on multiple devices at a time
