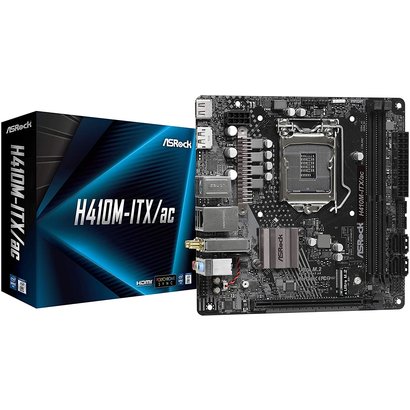

ASRock H410M-ITX/AC LGA 1200 Intel H410 SATA 6Gb/s Mini ITX Intel Motherboard

AS-H410MITXAC
0 Review(s) | Add your review
$129.00 Excl. tax
  • Availability: In stock (5)
Add to cart

  • Safe shopping

  • Cash
  • Credit Card
  • PayPal

Product description

  • Brand:ASRock
  • Article number:AS-H410MITXAC
  • Availability: In stock (5)
Model
Brand ASRock
Model H410M-ITX/AC
Supported CPU
CPU Socket Type   LGA 1200
CPU Type Supports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU Technologies Turbo Boost Technology 3.0
Chipsets
Chipset   Intel H410
Onboard Video
Onboard Video Chipset   Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
** VP9 10-bit and VC-1 are for decode only.
** VP8 and VP9 encode are not supported by Windows OS.
Memory
Number of Memory Slots 2×288pin
Memory Standard Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock's website for more information.
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported 64GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported   Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
* Supports NVMe SSD as boot disks
Other Slots 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Storage Devices
SATA 6Gb/s   4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.2 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**

** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Onboard Audio
Audio Chipset   Realtek ALC887
Audio Channels   7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
Bluetooth Supports Bluetooth 4.2 / 3.0 + High speed class II
Rear Panel Ports
Back I/O Ports 2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors 1 x Chassis Intrusion Header
1 x RGB LED Header*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x Chassis Fan Connector (4-pin)****
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector

* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor Mini ITX
LED Lighting RGB
Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
Features
Features Unique Feature:
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB Intel 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.05V, VCCIO, VCCSA Voltage Multi-adjustment

Software:
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
* These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor
- Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS:
- Microsoft Windows 10 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Packaging
Package Contents Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket
