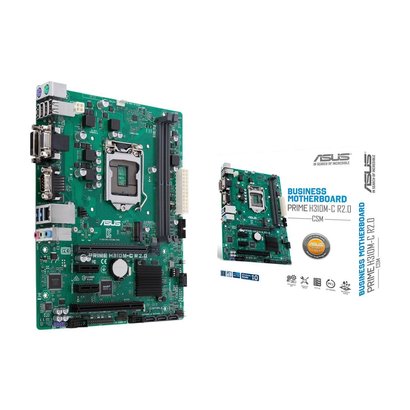

ASUS LGA1151 (300 Series) DDR4 M.2 VGA mATX Motherboard Motherboards Prime H310M-C R2.0/CSM

AS-H310MCR2CSM
$99.99 Excl. tax
  • Availability: In stock (2)

Product description

  • Brand:ASUS
  • Article number:AS-H310MCR2CSM
  • Availability: In stock (2)
Model
Brand ASUS
Series Prime
Model H310M-C R2.0/CSM-SI
Supported CPU
CPU Socket Type   LGA 1151 (300 Series)
CPU Type Intel for 8th Generation Core Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0*
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipsets
Chipset   Intel H310
Onboard Video
Onboard Video Chipset   Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: DVI-D/RGB ports
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 2 displays simultaneously
Memory
Number of Memory Slots 2×288pin
Memory Standard DDR4 2666/ 2400/ 2133 MHz, non-ECC, un-buffered memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors
*** Refer to www.asus.com for the Memory QVL (Qualified Vendors List)
Maximum Memory Supported 32GB
Expansion Slots
PCI Express 3.0 x16 1 x PCIe 3.0/2.0 x16
PCI Express x1 2 x PCIe 2.0 x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA 6Gb/s   4 x SATA 6Gb/s
M.2 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
Onboard Audio
Audio Chipset   Realtek ALC887
Audio Channels   8 Channels
Onboard LAN
LAN Chipset Realtek 8111H
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen1 (up to 5Gbps) connector supports additional 2 USB 3.1 Gen1 (up to 5Gbps) ports
1 x USB 2.0/1.1 connector support additional 2 USB 2.0/1.1 ports
Other Connectors 1 x LPT header
2 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x LPC Debug header
1 x Speaker connector
Physical Spec
Form Factor uATX
Dimensions (W x L) 9.6" x 7.6"
Power Pin 1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Features
Features Designed exclusively for 9th generation Intel Core processors to maximize connectivity and speed with dual integrated M.2 slots

ASUS Corporate Stable Model complimentary advance replacement and long lifecycle

ASUS Shield keeps your hardware and data protected with a self-recovering BIOS and anti-moisture coating

Fixed-position and color-coded connections allow for easy identification and assembly to optimize production line installation

LPC debug header streamlines motherboard troubleshooting
Packaging
Package Contents Accessories:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
