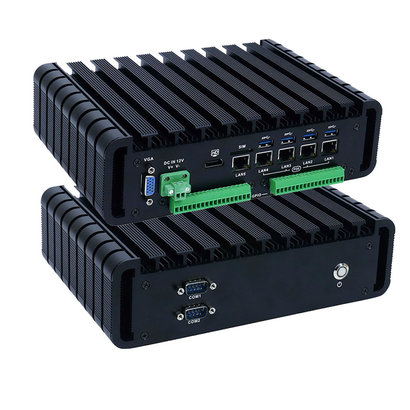

Cryo-PC Fanless 4-Port PoE i3/8GB/120SSD, 2TB Win10 IoT

Model

Cryo-PC-POE Machine Vision Industrial PC with 4-Ports PoE Switch

Case

High-quality pure aluminum mini pc case

CPU

Intel Core I3 6100U, i5 6200U

Display chip

Integrated Intel HD Graphics 510/520

Mainboard

17*17CM mini itx motherboard

Usable system

Win 7/8/10, linux OS

Memory

Support 1*DDR4 1866/2133Mhz ram slot , max 16GB

Storage

1*SATA3.0, 1*MSATA

Display port

1*VGA, 1*HD

BIOS

SPI AMI EFI BIOS

Rear I/O

 1*HD

 4*USB3.0

 1*2Pin Phoenix Terminal

 5*Intel Lan (4*Lan support 802.3af standard POE port)

 1*VGA

 2*18Pin GPIO Phoenix Terminal (with optocoupler isolation function)

 6*COM (2*COM support RS422/485) (10*COM Optional)

Front I/O

 2*COM (COM2 support RS232/485 optional)

 1*Power Switch

expansion slot

1*Mini-PCIE (support Wifi/3G/4G optional), Embedded SIM Slot;

1*Mini-PCIE (support MSATA)

Network

5*Intel i211-AT 10/100/1000M Lan (4*Lan support 802.3af standard POE port)

Power supply

Support 9V ~ 36V wide voltage

Work temp

0℃ ~ +50℃ (HDD),-20℃ ~ +60℃ (SSD), Surface air flow

Work humidity

5%~95% non-condensing

Dimension

237 * 164 * 70.5mm

Applications

Applied in Automat, Machine Vision, Digital signage, kiosk, Energy, telecommunication, Networking, Transportation, IP camera etc.
