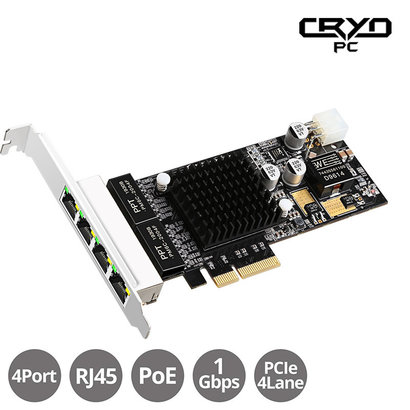

Cryo-PC 4-Port Gigabit 802.3at PoE+ 70-Watt PCIe Server Adapter

CPC-N45500
$225.00 Excl. tax
  • Availability: Out of stock
Out of stock

Product description

  • Article number:CPC-N45500
  • Availability: Out of stock

Features
• Intel® server-grade GbE Mac Controller
• PCI Express (PCIe) x4 interface, compliant with PCI Express 2.1 specification
• PXE network boot
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Provides installation flexibility for standard and low-profile computers, with a dual-profile design
• Supports 4 Gigabit Ethernet MAC Controller
• IEEE 802.3at compliant with up to 30W power per port
• 12V Mini-Fit 6-Pin power connector input
• Powered device (PD) auto detection and classification
• IEEE 802.1q VLAN ID tagged
• 9.5K jumbo frame size
• Complies with Microsoft and Linux platforms

Hardware
Bus Type: PCI Express x4
Card Type: Standard/Low Profile
Chipset ID: Intel – I350 ICPlus – IP804

Industry Standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T,IEEE 802.1Q VLANs, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
Interface: 4 x RJ45
Power Supply: 12V Mini-Fit 6Pin Power supply
Single PoE Output: 30 watts max

Power over Ethernet
PoE Standard: IEEE 802.3at
PoE Power Supply Type: End-span
PoE Power Supply Type: Per port up to 52V DC, max. 30 watts
Power Pin Assignment: 1/2 (+), 3/6 (-)
PoE Power Budget: 70W maximum with Mini-Fit 6Pin power connector
Maximum number of PDs: 4

Software
OS Compatibility: Windows® 7, 8.x, 10, Windows Server® 2008 R2, 2012, 2016, Linux 2.6.x to 4.x
