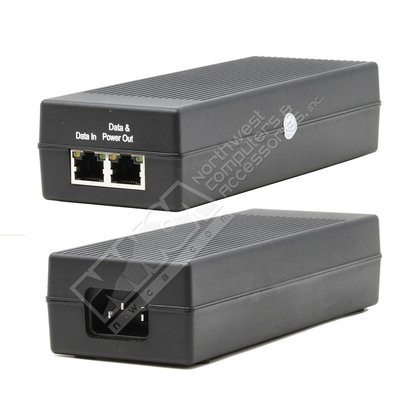

Cryo-PC PSE803 Single Port Gigabit PoE 30W 100M Injector

PSE803, PoE Injector single-port Power over Ethernet equipment, the injector is suitable for indoor using, 100V- 240VAC input voltage. Connected the injector and the network terminal equipment with by Cat5 cable.The device can be connected with Ethernet devices, such as routers, switches, wireless AP, telephone network, Industrial network terminals, network cameras and other POE powered applications consistent with IEEE802.3at standards. Meet the needs of remote place without power or through Ethernet cable to power supply. To increase reliability and simplify of system installation for equipment, and provide efficient engineering solutions.



Power function: input overvoltage-undervoltage ,output overvoltage

Every port output over current short circuit protection and so on

System reliability:MTBF>100k hours

Conducted interference (CE) radiated interference (RE)

Accord with EN55022?CLASS B standard



Tehcnical Specifications Model: CPC-PSE803 Input Voltage: 100-240VAC Network Standards: IEEE802.3i 10 BASE-T, IEEE802.3i 100 BASE-TX, IEEE802.3x flow control, IEEE802.3af/IEEE802.3at PoE Power: 30W Cable: UTP cat.5 or higher, Internal power adapter Processing Types: Store-and forward, Half-duplex back pressure and IEEE802.3X, Full-duplex flow control Power Pin: 1 2 + 3 6- Data Rate: 0/100/1000Mbps Installation and Management: Plug and play installation, Midspan automatically detects all PoE supported devices

LED indicator: System: Power, PoE max. power. Per Port: Link, Speed, PoE active, PoE Error. Operating Temperature: 0°C-40°C Storing Temperature: -10°C-70°C Operating Humidity: 20%-85% Certifications: CE/FCC/RoHS Warranty: 1 Year In the Box: CPC-PSE803, power cord, user guide
