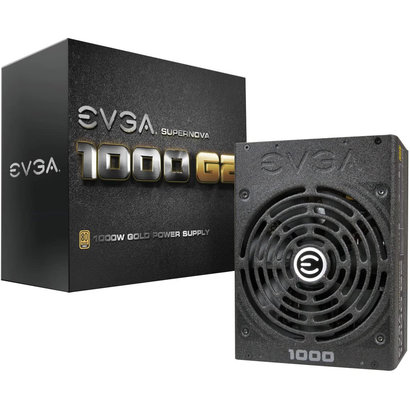

EVGA SuperNOVA 1000 G2, 80+ GOLD 1000W, Fully Modular ATX Power Supply 120-G2-1000-XR (Bulk Pkg)

EV-120G21000XR
$209.99 Excl. tax
  • Availability: In stock (20)

Product description

  • Brand:EVGA
  • Article number:EV-120G21000XR
  • Availability: In stock (20)

The EVGA SuperNOVA 1000 G2 has arrived! This power supply is 80 Plus Gold Rated, offers 1000W of continuous power, exceptional efficiency and is fully modular. Not to mention, a first-class 10-year EVGA warranty. Designed with enthusiast needs in mind, the EVGA SuperNOVA 1000 G2 power supply is the best choice to power this- as well as next-generation enthusiast computers. Take your system to the next level and power up with the EVGA SuperNOVA 1000 G2!

  • 80 PLUS Gold certified, with up to 90% efficiency under typical loads
  • Superior vertical double layer main transformer increases power output
  • Highest-quality Japanese Nippon Chemi-Con solid-state capacitors ensure long-term reliability
  • Fully modular to reduce clutter and improve airflow
  • Quiet and intelligent auto-fan for near-silent operation
  • High-amperage single-rail design for maximum power and efficiency
  • Built-in over-power/under-power/over-voltage/short-circuit protection
  • EVGA's unparalleled customer support

 Heavy-Duty Protections, Including:

  • OVP (Over-Voltage Protection)
  • UVP (Under-Voltage Protection)
  • OCP (Over-Current Protection)
  • OPP (Over-Power Protection)
  • SCP (Short-Circuit Protection)
AC Input 100 ~ 240 VAC, 15A, 50-60Hz
DC Output +3.3V +5V +12V +5Vsb -12V
MAX Output 24A 24A 83.3A 3.0A 0.5A
999.6W
Combined 120W 999.6W 15W 6W
Output Power 1000W @ +50C

Cable Length

ATX Cable 1x 600mm (m)
EPS Cable 2x 750mm (m)
PCIE Cable 2x 750mm, 900mm (m) 4x 750mm (m)
SATA Cable 2x 550mm, 650mm, 750mm (m) 2x 550mm, 650mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm (m) 1x 550mm, 650mm (m) (f)
Floppy Cable 1x 100mm
AC Power 1x 1500mm (m)
120-G2-1000-XR

120-G2-1000-XR
Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA 1000W provides up to 83.3A on a single rail!

120-G2-1000-XR
LLC Resonant Circuit Layout

Full DC to DC, LLC resonant circuit design improves efficiency.

120-G2-1000-XR
Fully Modular

A fully-modular design allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave out unnecessary cables to reduce case clutter and maximize case airflow.

120-G2-1000-XR
Gold-Rated Efficiency

80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load this power supply is 90% efficient or higher.

120-G2-1000-XR
120-G2-1000-XR
NVIDIA SLI Ready

Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 1000W gives you the power you need to drive these demanding systems and achieve the best overclocks.

120-G2-1000-XR
Highest-Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the best Japanese solid state capacitors.

120-G2-1000-XR
Double-Ball Bearing Fan

A high-quality dual-ball bearing fan gives the SuperNOVA 1000W an excellent thermal and acoustic profile. Its high reliability ensures a long PSU lifetime.

120-G2-1000-XR
120-G2-1000-XR
