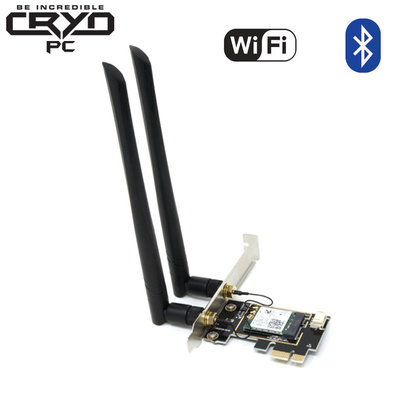

PCIe 768Mbps PCIe WiFi Card for PC with Bluetooth 4 Wireless Network Adapter, Ultra-Low Latency card
CPC-N45130
$39.99 Excl. tax
- Availability: In stock (24)
Safe shopping
-
-
Product description
- Brand:Cryo-PC
- UPC:643361451304
- Article number:CPC-N45130
- Availability: In stock (24)
Description
PCIe Intel 7260 Dual band wireless-N adapter supports 802.11agn, dual-band, 2x2 Wi-Fi, Bluetooth 4.0, it delivers faster speeds (2.4GHz up to 300Mbps, 5GHz up to 867Mbps), greater range and more reliability. Combined 4th gen Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Dual Band wireless-N 7260 reshapes your connected experience at work, home, or on the go.
Specification
- Compliant with PCI Express host interface specification 2.0
- Connector interface: 1
- Compliant with dual band wireless-N: 2.4G and 5G
- 2.4GHz band rate up to 300Mbps, 5GHz band rate up to 867Mbps
- Complies with 802.11abgn, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w, 802.11ac
- Supports simultaneous Client and SoftAP modes
- Wi-Fi Direct for peer to peer device connections
- Support authentication with WPA and WPA2, 802.1X(EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
- Wireless power gain: 2*5dB
- Complies with Dual mode Bluetooth 4.0
- Dual mode Bluetooth 2.1, 2.1+EDR, 3.0, 3.0_HS, 4.0(BLE)
- Driver support for Windows® 7 32/64bit, Windows® 8 32/64bit, Windows® 10 32/64bit, Windows® 11
Features
| Model | PCIe Intel 7260 Dual-band wireless-N adapter |
| Standards | IEEE802.11a/b/g/n/ac, WiFi and Bluetooth 4.0/3.0+HS, 2.0+EDR (Wifi: PCIe, BT: USB) |
| PCIe BUS | x1/x4/x8/x16 |
| Frequency range | Wifi: 2.4GHz, 5.8GHz |
| Antenna | 2*5dBi |
| Transmission rate | 2.4G up to 300Mbps, 5.8G up to 867Mbps |
| Operating system | Windows® 7/8/8.1/10/11 |
| Modulation type |
WiFi: 802.11a/b/g/n/ac: OFDM, 802.11B: CCK, DQPSK, BPSK Bluetooth: header GFSK Payload2M: 4-DQPSK Payload3M: 8DPSK |
| IEEE WLAN Standard | IEEE802.11abgn, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w |
| Bluetooth | Dual mode Bluetooth 2.1, 2.1_EDR, 3.0, 3.0+HS, 4.0 |
| Operating Temperature | 0~80 °C |
| Humidity Non-Operating | 50% to 90% RH non-condensing (at temperature of 25-35 °C) |
| Authentication | WPA and WPA2, 802.1X, EAP-SIM, EAP-AKA |
| Encryption | 64-bit and 128-bit WEP, AES-CCMP, TKIP |
Package Contents
- 1 x PCIe Intel 7260 Dual band wireless adapter
- 1 x User Manual
- 1 x Low profile bracket
- 2 x 5dBi gain antenna
- 1 x 9Pin to 4Pin USB cable
System Requirements
- Windows® 7 32/64bit, Windows® 8 32/64bit, Windows® 10 32/64bit, Windows® 11
- One available PCI Express x1/x4/x8/x16 slot
Hardware Installation
- Turn off computer and unplug power cord
- Remove the computer side panel and any slot cover that might be covering PCIe slot to be used
- Insert the adapter edge connector into the slot and secure the bracket to the chasis
- Plug in USB 4pin connector to the card and 9pin end to an available USB header on the motherboard
- Install the antennas onto the adapter and screw tight
- Replace side panel
- Power on computer
