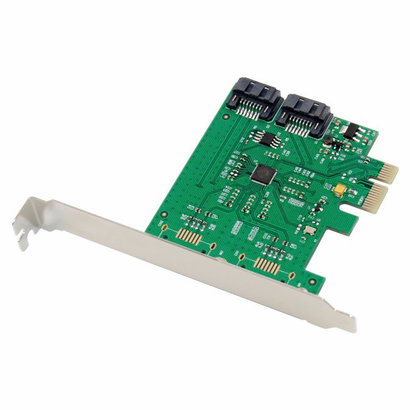

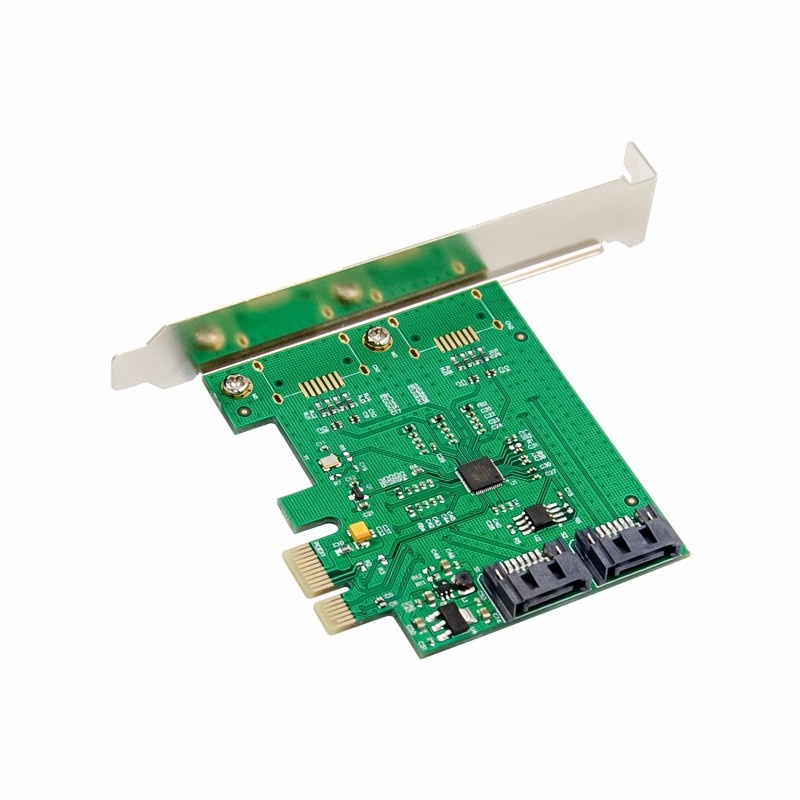

Cryo-PC 2 Port SATA 6Gbps PCIe 2.0 x1 Non RAID Controller Card

Product description

• Brand:Cryo-PC
• UPC:643361485507
• Article number:CPC-48550
• Availability: In stock (12)

The CPC-48550 expansion card has Two SATA GEN III 6Gb/s channels Host controller that brings server-class features to the desktop . This board enable the use of the industry’s newest and fastest hard drivers at 6Gb/s while providing backward compatibility to legacy SATA1.5Gb/s or 3Gb/s drives. It will enhance system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/S of throughput. Using the RAID function , the SATA drivers attached to this controller can be easily configured as 2 individual ports with NO RAID.

FEATURES

▪Compliant with PCI-Express Specification V2.0 and backward Compatible with PCI-Express 1.x

▪Compliant with Serial ATA Specification 3.0

▪PCI Express x1 interface and compatible with PCI Express x1,X4 ,X8 and X16 slots

▪Supports communication speeds of 6Gbps,3Gbps,1.5Gbps

▪Hot plug and Hot Swap

▪Support Native Command Queue (NCQ)

▪Support Port Multiplier FIS based switching or command based switching

▪Compatible with SATA 6G, 3G and 1.5G Hard drives
