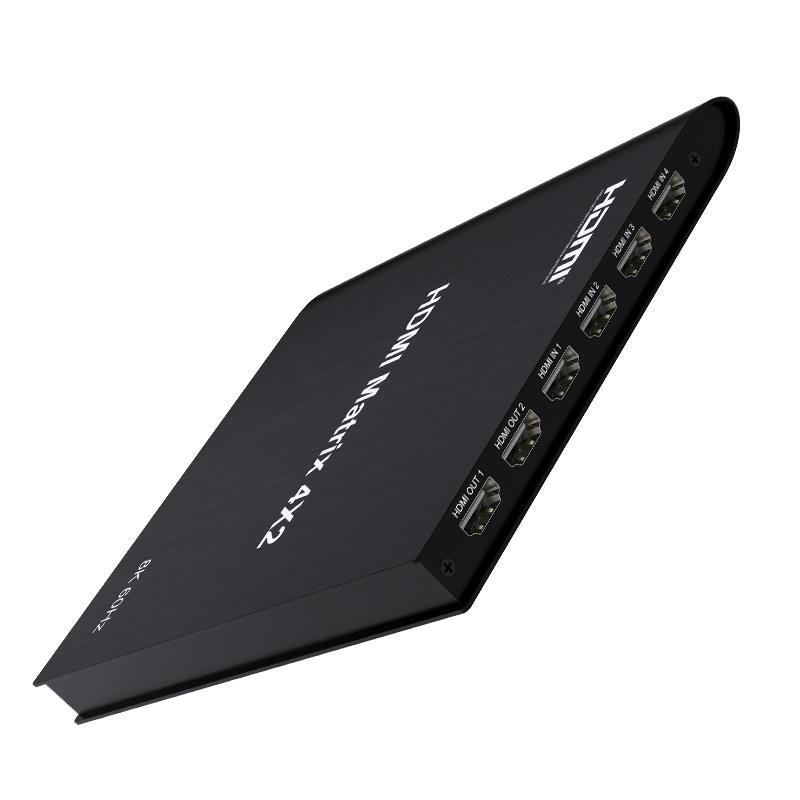

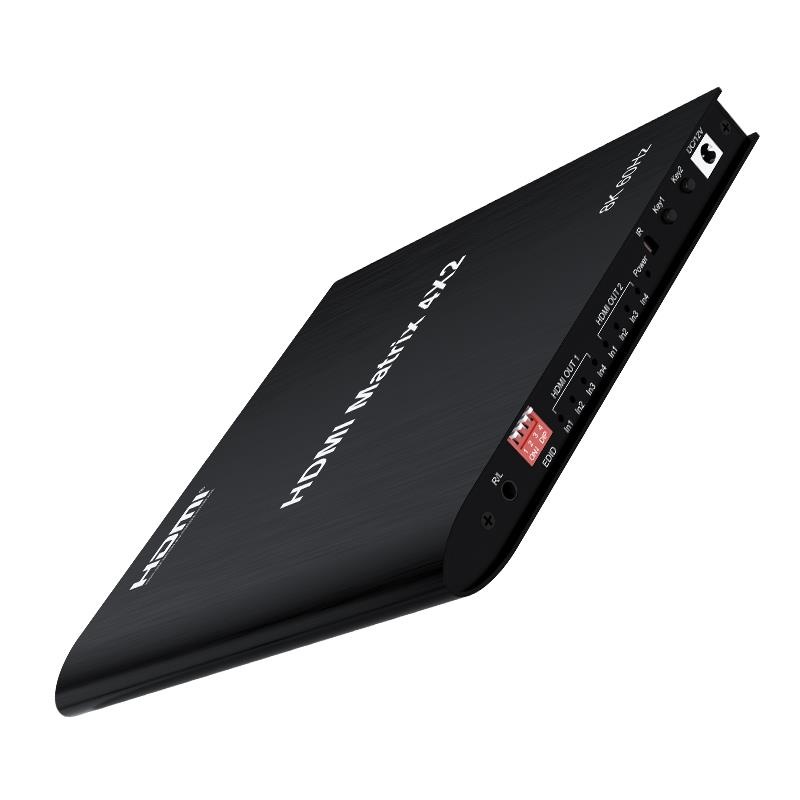

Gigacord HDMI 2.1 Matrix 4 in 2 out Splitter 4K 120Hz, 8K 60Hz, HDCP v2.3 HDR Support

Product description

• Brand:Gigacord
• Article number:GC-21420
• Availability: Out of stock

The HDMI 2.1 8K/60Hz matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with stereo headphone output. The matrix splitter allows four HDMI devices to be switched or split easily to two HDMI compatible monitors  or projectors. And any output ports can realize independent audio output by stereo head phone.Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

* Support HDMI 2.1
* Support HDCP2.3
* Support HDR
* Support 3D video format
* Support 8K@60Hz
* Support audio outputs, 3.5mm earphone jack output
* 4 HDMI inputs switch and split to 2 HDMI displays
* HDMI output1 support 8K 60Hz

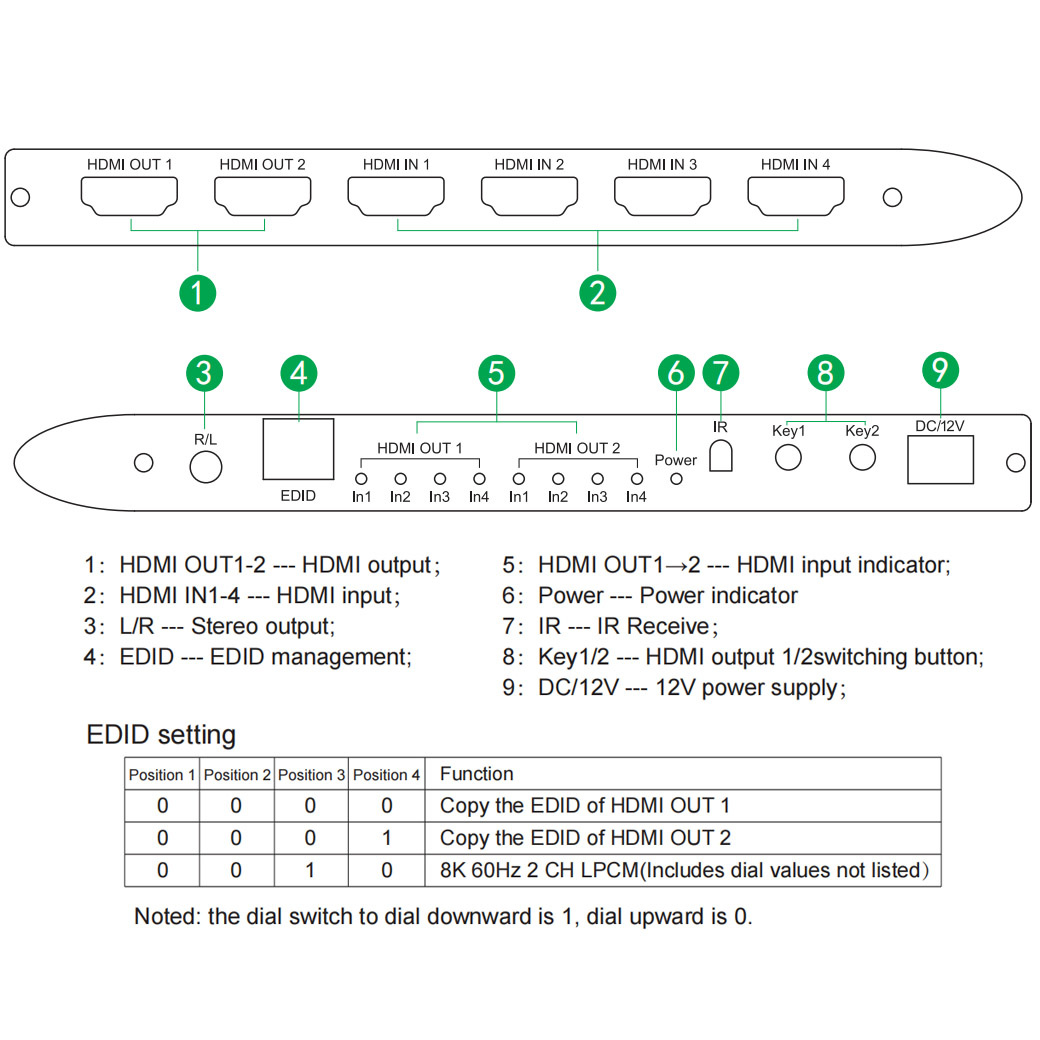

Physical interface diagram:

HDMI resolution …………………….…....….…....…...................…................ up to 8K/60Hz

Support video format ……………................................................…... 8/10/12 bit deep color

Support audio format ……………...............................................….. LPCM/DTS/Dolby-AC3

Max baud rate ……………….…….……..………….…..….…...……………...…..…... 40Gbps

Input cable distance ..…...…........... 4K/60Hz ≤5M;8K/60Hz ≤3M HDMI 2.1 standard cable

Output cable distance …................. 4K/60Hz ≤5M;8K/60Hz ≤3M HDMI 2.1 standard cable

HDMI Input .......……...………………………………....………...………..……….…....….….. 4

HDMI Output ……………...…………………..........………......…………………..….…....….. 2

Max working current ...………………………………….…..…..………………..…….… 600mA

Power adapter format .................. Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A

Operating Temperature range ……...........….…...……..………………………. (-15 to +45℃)

Operating Humidity range ……....….....……...……..….….. 5 to 90%RH (No Condensation)

Dimension (L x W x H) ...……………...……….……....………………...…. 172x172x19 (mm)

Weight …..………………………..………………..…....……….….........….….......….…... 456g
